HVAC System Filtration Protection Guide

I.Why HVAC Systems Depend on Filtration Protection

A stable HVAC system depends on clean circulating water and unobstructed airflow. Across industrial plants, agricultural greenhouses, and commercial buildings, the water inside HVAC loops often carries unexpected contaminants. When these solids accumulate, they undermine heat exchange efficiency, clog valves, accelerate corrosion, and shorten equipment life.

This is why HVAC System Filtration Protection has become a priority in engineering, commissioning, and long-term operation.

Filtration solutions act as a protective layer within the water loop, defending pumps, heat exchangers, chillers, and cooling towers from suspended impurities. As a professional filtration equipment manufacturer with extensive export experience, we provide complete filtration architecture for HVAC water systems based on the Dawning product line.

II.Common Water Contamination Sources and Possible System Risks

Water pollutants vary depending on building age, water source, cooling tower conditions, and environmental exposure. The following contaminants often pose the greatest risks to HVAC installations.

1. Solid Particles: Sand, Rust, and Dust

Particulate intrusions raise several operational challenges:

• Line occlusion restricting flow
• sticking or failure of control valves
• Wear of pump impellers and heat-exchange plates

As particles accumulate, system pressure drops and mechanical components lose precision.

2. Suspended Impurities: Slurry, Flocs, and Algae

These impurities decrease HVAC performance by:

• Increasing pressure loss across pipelines
• Reduce hydraulic balance within the system.
• Interfering with cooling efficiency in closed-loop or open-loop circuits
•

3. Water Instability and Efficiency Decline

Unstable water quality can gradually reduce heat transfer capability. This leads to elevated energy consumption, higher maintenance frequency, and more frequent system shutdowns for cleaning.

The foundational countermeasure is establishing a multilayer filtration strategy—selecting the right filtration grade and pairing appropriate filtration devices.

III.The Structure of HVAC Water Filtration: A Complete Protection Chain

A robust HVAC Filtration System is built progressively, starting with coarse filtration and advancing toward precision removal. Dawning’s product portfolio aligns naturally with HVAC challenges.

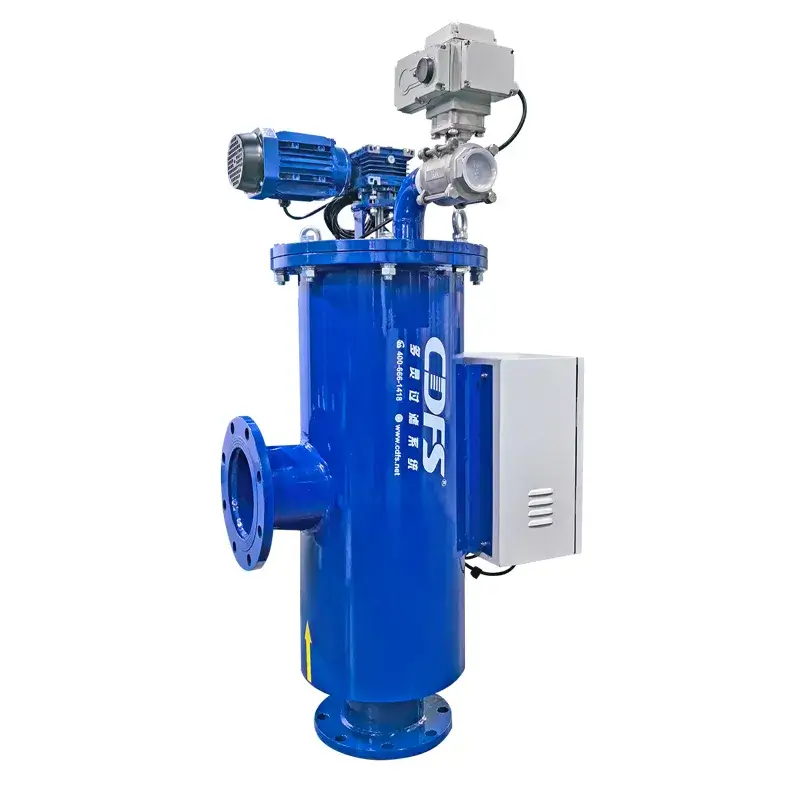

1. Preliminary Coarse Filtration: Automatic Screen Filter

Stage Purpose: First line of defense in HVAC water flow
Function: High flow capacity and minimal flow resistance while capturing large debris such as sand, leaves, scale, and other coarse solids
Typical Use:

• Cooling Tower Return Lines
• Industrial cooling loops

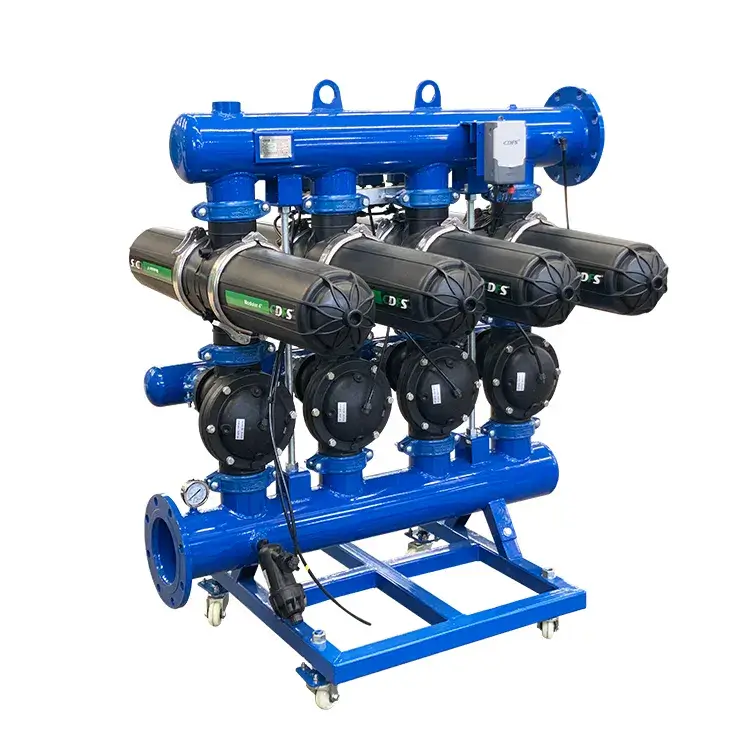

2. Mid Filtration: Filter with Automatic Disc / HVAC Disc Filter Unit

Stage Purpose: Increases overall HVAC System Filtration accuracy
Function: Deep-layer filtration by disc technology to trap smaller suspended particles.
Advantages:

• Fully automatic backwashing
• Suitable for continuous HVAC operation

Typical Usage:

• Chiller inlet protection
• Cooling water recirculation
• Heat pump systems

3. Deep Filtration: Sand Media Filter / Multi-Media Filter

Stage Purpose: Ensures high-quality filtration for contaminated or unstable water sources
Function: Multi-layer media deliver extensive depth filtration and steady water clarity
Typical Use:

• Rehabilitation of old buildings
• Systems subjected to variable conditions of water
• Greenhouse HVAC or water-cooled agricultural installations

4. Fully Automatic System Stability: Self-Cleaning Filter / Backwash Filter

Stage Purpose: Provides long-term service with reduced human interaction
Function:

• Automatic waste disposal
• Consistent filtration recovery without shutdown

Best For:

• High-duty, year-round HVAC systems
• Sites without many maintenance resources

IV.How to Build an Appropriate Filtration Strategy for Your HVAC System

Choosing proper filtration involves matching water characteristics, site conditions, and maintenance expectations.

1. Choose Application Filtration Combinations

• Commercial HVAC: Screen filter + Disc filter + Automatic self-cleaning system
• Highly Polluted or Aging HVAC Systems: Screen filter + Sand media filter + Precision disc filtration
• Agricultural Greenhouses / Food Processing Facilities: Reinforced filtration + Multi-media filter + Automatic backwash unit

2. Choose Filtration Grade Based on Water Quality

• High particle load: Automatic Screen Filter
• High suspended solids: Disc Filter
• Poor water quality with high stability: Sand Media Filter

3. Automation Level Determination According to Maintenance Capacity

• On-site teams of fitters available: Manual or semi-automatic devices
• Fully automatic self-cleaning systems in which shutdown is unacceptable

V.Maintenance Essentials for Long-Term Filtration Performance

Reliable HVAC System Filtration Protection also depends on consistent maintenance routines:

• Monitor the differential pressure to avoid overloading the filters.
• Set proper backwash cycles for disk filters
• Follow recommended backwash intervals and media replacement cycles for sand filters
• Check self-cleaning discharge valves routinely for effective functioning

These steps extend equipment life and reduce unnecessary operational costs.

VI.Export Capability: What We Provide for Global HVAC Clients

Our solutions support international clients with complete filtration packages tailored to HVAC requirements.

• Turnkey water-side filtration proposals for building HVAC systems
• OEM customization for flow rate, interface type, and pressure class
• Export-grade packaging suitable for long-distance shipping
• Compliance with varying water conditions across the Middle East, Africa, Southeast Asia, Europe, and beyond
• Professional support including design review, installation guidance, and remote commissioning assistance

VII.Conclusion: Building Stable, Efficient, Low-Maintenance HVAC Systems Starts with Filtration

A well-designed HVAC Filtration System safeguards equipment, maintains system efficiency, and reduces the cost of long-term operation. Each filtration stage—from screen filters to disc units and media filters—plays a distinct role.

By implementing the right filtration architecture, building operators and facility engineers can secure reliable, uninterrupted HVAC performance for years to come.

FAQs

1.Why is HVAC System Filtration Protection important?
It prevents debris accumulation, reduces wear on key components, and keeps heat transfer performance stable.

2.How do I know which filtration device suits my system?
Selection depends on particle load, suspended solids levels, water clarity requirements, and maintenance capability.

3.Do disc filters work for both open-loop and closed-loop HVAC circuits?
Yes, disc filters are suitable for both, especially where fine suspended materials impact heat exchange efficiency.

4.How often should sand media filters be maintained?
Media should be checked periodically and replaced according to system load and manufacturer guidelines.

5.Can automatic self-cleaning filters operate continuously?
Yes, they are designed for uninterrupted service and are ideal for facilities where shutdown is not practical.
