Irrigation Filtration System Upgrade Case Study: Real Results from Field Applications

Irrigation filtration systems are essential for modern agriculture. They protect sprinkler heads, drip lines, and pumps from sediment and organic debris in irrigation water, ensuring even water delivery and reducing maintenance costs. In this case study, we look at real-world examples where automated filtration systems were used to upgrade existing irrigation infrastructure—dramatically improving system performance and increasing crop yields.

The irrigation filtration upgrade cases featured here come from real projects worldwide—including China, Peru, Thailand, Egypt, and Australia—where challenging water sources such as rivers, reservoirs, and groundwater with high sediment content demanded reliable and efficient filtration solutions.

Worldwide Irrigation Filtration System Upgrade Case

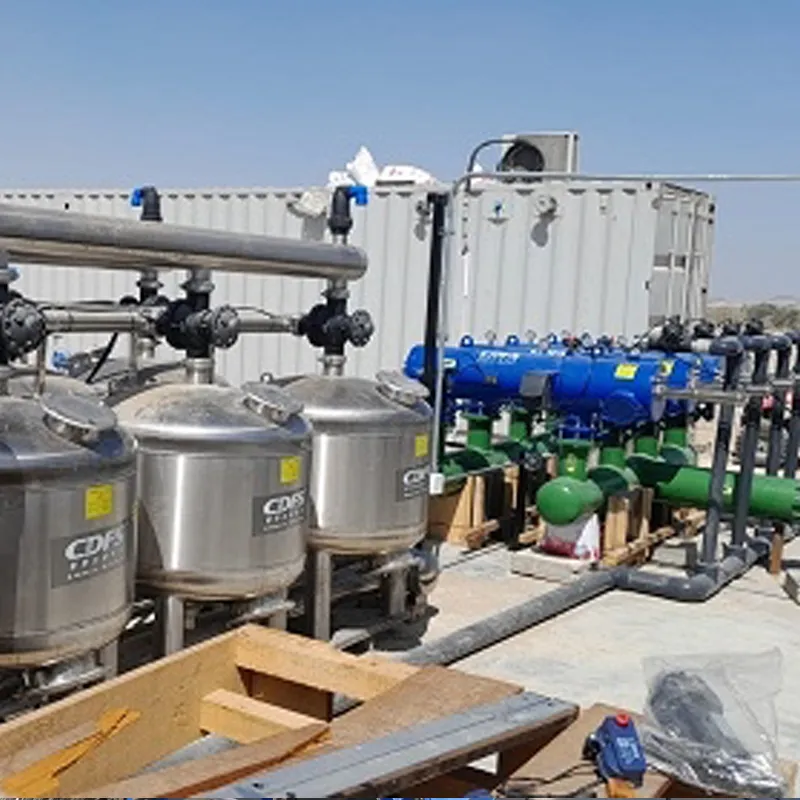

Peru Blueberry Irrigation Using River Water Project

Challenge:
In Peru's blueberry cultivation areas, river water contains high levels of fine organic matter and sludge, posing risks of clogging to irrigation systems at flow rates up to 180 m³/h and reducing overall field efficiency.

Solution:

• Primary filtration used an automatic backwashing sand media filter (DMF3616-6) with a 10-inch main pipe to effectively remove fine organic matter and sludge from the river water.
• Secondary filtration employed parallel-connected self-cleaning screen filters (DLHF408MAX) at 120-mesh precision, blocking particles larger than 120 mesh from entering field pipeline systems.

Results:

• The design maintained sufficient flow capacity of 180 m³/h throughout operations.
• Filtration efficiency was guaranteed, minimizing clogs and downtime.
• Equipment service life was significantly extended due to cleaner water delivery.

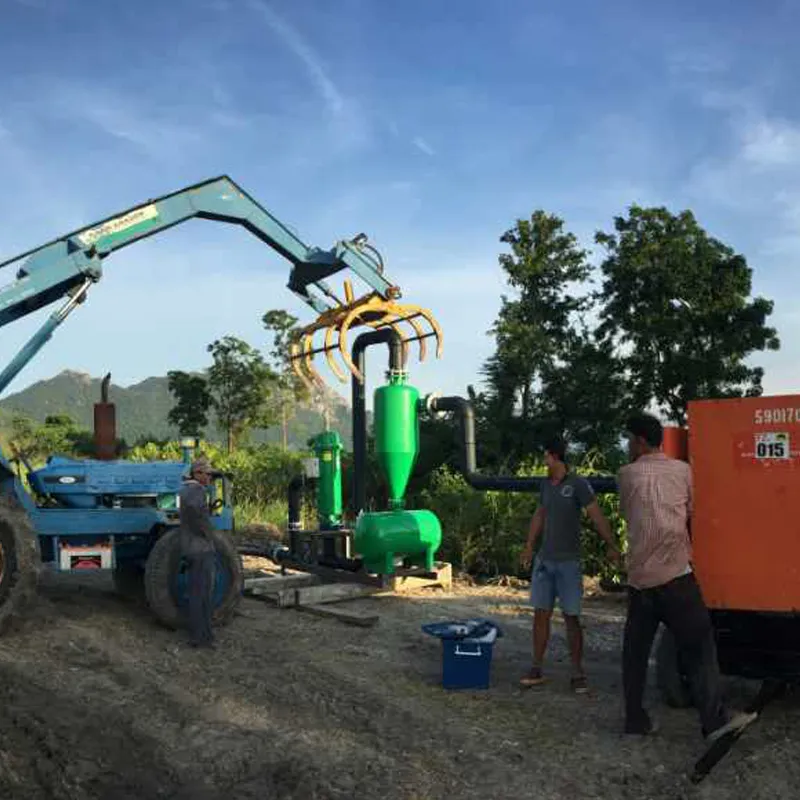

Thailand Well Water for Flower Irrigation Project

Challenge:
In Thailand's flower cultivation regions, well water carries substantial larger sand and sediment particles through 4-inch pipelines at flow rates up to 100 m³/h, frequently clogging irrigation emitters and disrupting field operations.

Solution:

• Primary filtration applied a centrifugal filter to effectively separate and remove larger sand and sediment from the well water source.
• Secondary filtration utilized a self-cleaning screen filter at 120-mesh precision to block finer particles larger than 120 mesh from reaching downstream pipeline systems.

Results:

• Reliable filtration prevented particles larger than 120 mesh from entering the pipeline network.
• Flow capacity of 100 m³/h was consistently maintained without pressure drops.
• Irrigation system longevity improved, reducing maintenance needs and downtime for flower production.

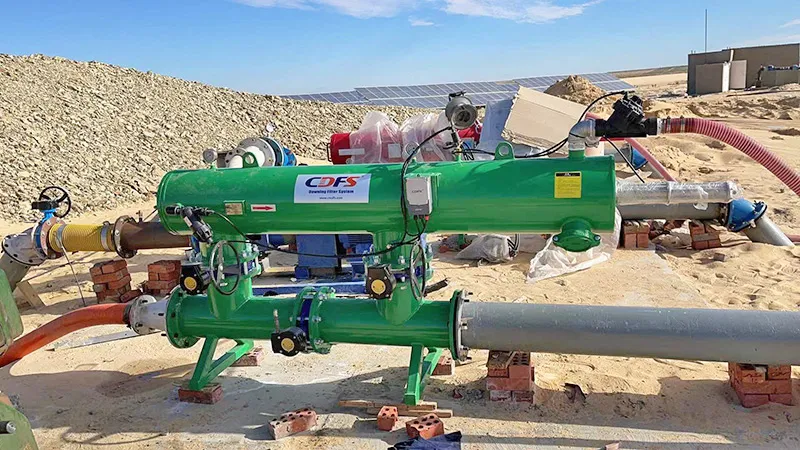

Egypt Irrigation Project

Challenge:
In Egypt's irrigation systems, water sources introduce particles that risk clogging pipelines and emitters, demanding reliable filtration for sustained agricultural productivity in arid conditions.

Solution:

• Equipped maintenance valves for easy access and servicing of the filtration setup.
• Single-stage hydraulic automatic backwashing screen filter with two-stage screens (coarse and fine) at 120-mesh precision to capture contaminants effectively.
• Battery-powered filter controller triggers automatic backwashing based on differential pressure or time intervals.

Results:

• Achieved fully unmanned operation, eliminating manual intervention needs.
• Consistent 120-mesh filtration prevented particle ingress into downstream systems.
• Enhanced reliability reduced downtime and maintenance costs for irrigation networks.

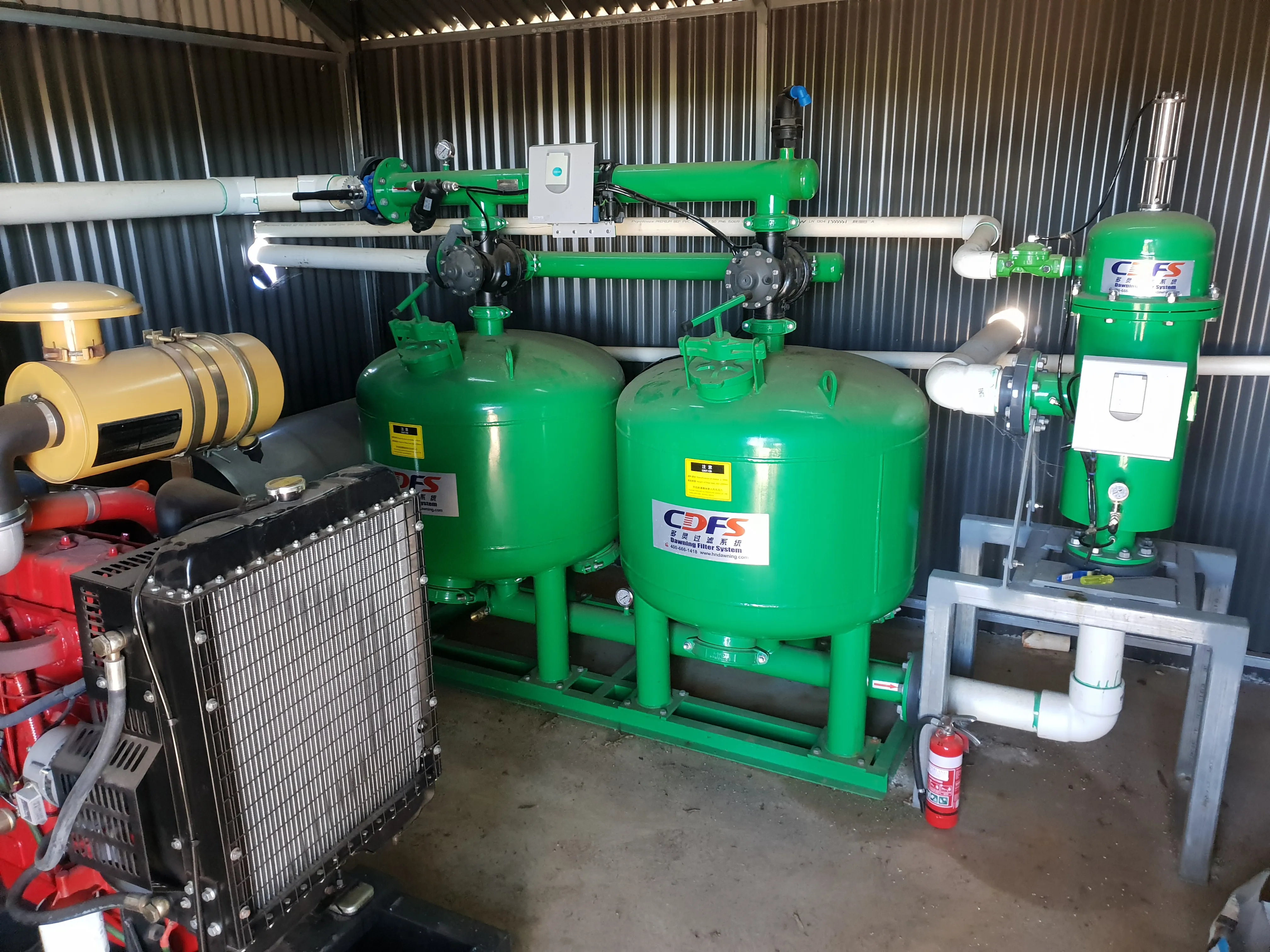

Australia River Water for Vineyard Irrigation Project

Challenge:
In Australia's vineyard regions, river water carries high levels of fine organic matter and sludge through 4-inch main pipes, threatening to clog drip irrigation systems and compromise grape yield efficiency.

Solution:

• Primary filtration employed a sand media filter (DMF4816-2A) with a 4-inch main pipe to remove fine organic matter and sludge from the river source.
• Secondary filtration used parallel-connected self-cleaning screen filters (DLHF304MAX) at 120-mesh precision, blocking particles larger than 120 mesh from downstream pipeline systems.

Results:

• Battery-powered filter controller enabled differential pressure- and time-triggered automatic backwashing for fully unmanned operation.
• Reliable filtration ensured consistent water quality and flow without clogs.
• Vineyard irrigation uptime improved, supporting higher productivity and reduced labor costs.

China Irrigation Filtration System Upgrade Case

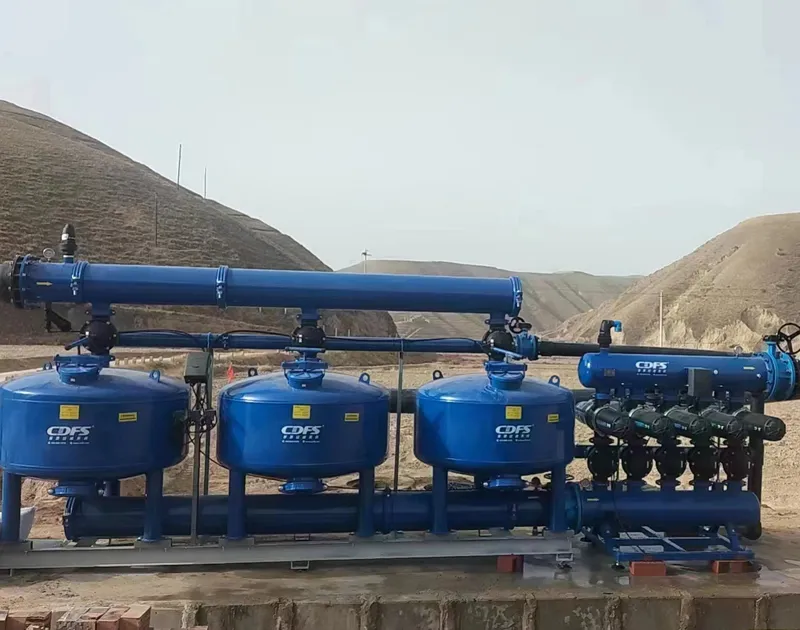

Gansu Province Wheat Yield Improvement Project

Challenge:
In Northwest China’s arid Gansu Province, irrigation water sourced from the Yellow River had extremely high sediment levels. Flow rates reached 180 cubic meters per hour, and unfiltered water caused frequent clogging of drip and spray systems, reducing coverage efficiency and increasing downtime.

Solution:
To address these issues, the system designers adopted a two-stage filtration strategy:

• Primary filtration: an automatic backwashing sand media filter (DMF4816-3) to remove suspended solids and organic matter.
• Secondary filtration: an automatic backwashing disc filter (DLLF4-5) with a 120-mesh precision rating to stop particles larger than 120 mesh from entering downstream pipelines.

Both filters were delivered as pre-assembled skid-mounted units, minimizing installation time and reducing on-site labor needs.

Results:
Automatic pressure-differential backwashing eliminated the need for manual cleaning.
Integrated fertilizer tanks and field solenoid valves optimized irrigation cycles.
The irrigation network operated more reliably, and average crop yield per mu (a Chinese land unit) increased by more than 30%.

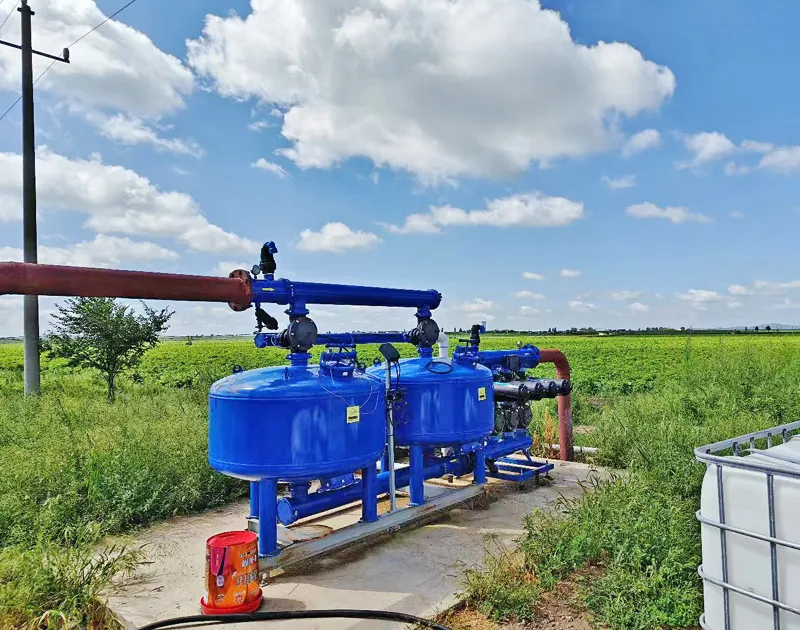

Hebei Potato Cultivation Project

Challenge:
In northern China’s Hebei Province, the irrigation water stored in reservoirs had high microbial and particulate levels. The previous filtration setup was insufficient, causing frequent clogging of drip irrigation lines during the summer months.

Solution:

• Primary filtration: DMF4816-2 automatic backwashing sand media filter (6-inch main line).
• Secondary filtration: DLLF4-4 automatic backwashing disc filter with 120-mesh precision.
• Automation: IoT-controlled solenoid valves and fertilizer integration.

Pre-assembled filters enabled rapid deployment and reduced installation complexity.

Results:

• Sustained performance under high organic load conditions.
• Extended intervals between maintenance actions.
• Overall irrigation efficiency and crop yield both improved by over 30%.

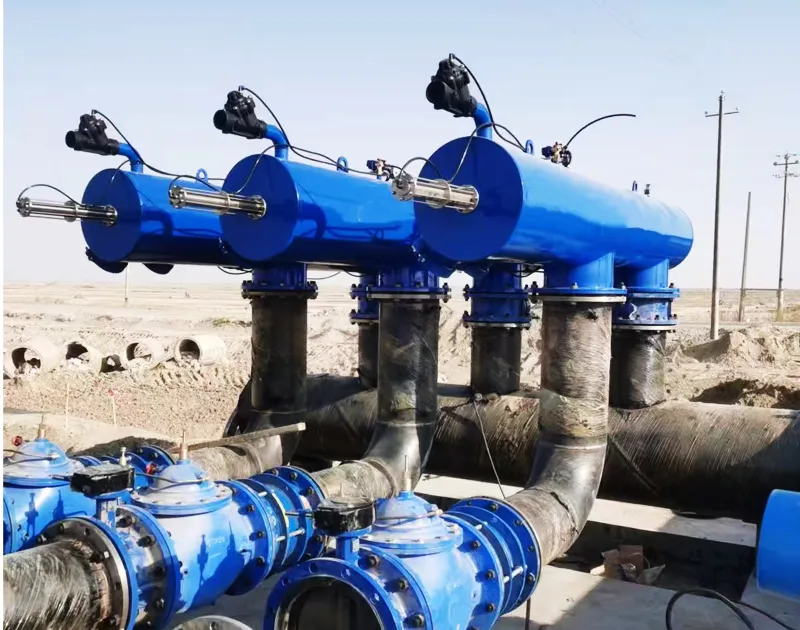

Xinjiang Wheat Cultivation Project

Challenge:
Irrigation water sourced from snowmelt in extreme arid conditions contained leaves, hair, and other debris that threatened to clog traditional filters.

Solution:

• Three hydraulic automatic backflush screen filters installed in parallel to handle flow rates of 600 cubic meters per hour.
• Dual-stage filtration (coarse + fine mesh).
• Battery-powered automatic backflush triggered by pressure differential or time intervals.

Results:

• Unmanned operation with minimal manual oversight.
• System reliability increased and water delivery stabilized.
• Crop yield improvements aligned with other regions—30%+ over previous seasons.

Consistent Benefits Across Multiple Locations

Filtration upgrades across Peru, Thailand, Egypt, Australia, Sichuan, Shandong, Yunnan, and Guangxi delivered uniform gains in reliability and productivity from diverse water sources.

• Reliable particle removal beyond 120-mesh precision and reduced clogging in pipelines/emitters.
• Universal automatic backwash with battery-powered controllers enabled fully unmanned operations.
• Modular skid-mounted designs minimized installation time; enhanced irrigation uniformity and flow rates (100-180 m³/h).
• Extended equipment life, lower maintenance frequency, and yield increases of 30% or more per mu.

These results affirm that advanced filtration drives both system dependability and agricultural output worldwide.

Key Lessons from Real Irrigation Filtration Projects

1. Automated backwashing with differential pressure/time triggers is essential for handling high sediment/organic loads without manual intervention.

2. Multi-stage filtration—primary (sand media/centrifugal) for bulk removal, secondary (screen/disc) for fine particles—protects drip/sprinkler systems effectively.

3. Skid-mounted, pre-assembled solutions with tailored pipe sizes (4-10 inch) cut labor/setup time significantly.

4. Integrated controls (battery-powered/solenoid valves) plus precise scheduling optimize flow, fertilizer injection, and crop management across locations.
