Automatic self-cleaning water filters: Single unit flow 19-2000m3/h Filtration precision 20-4000 micron
Type：Vertical Material：Carbon steel Cleaning：Centrifugal Control：Automatic
Product advantagev
Product application
1、Industrial process water filtering, such as nozzle and heat exchange station water protections.
2、Industrial circulating water filtering,——steel, metallurgy, paper making, heat exchanger, electric power, petrochemical, food, air conditioning system and other industries.
3、Raw water treatment filtering,——surface water, river，lake and sea water, etc
4、Irrigation filtering—— farmland, park, municipal and golf course water filtration.
5. Filtrations for: aquaculture, swimming pool, and water park and so on.
Product principle
|

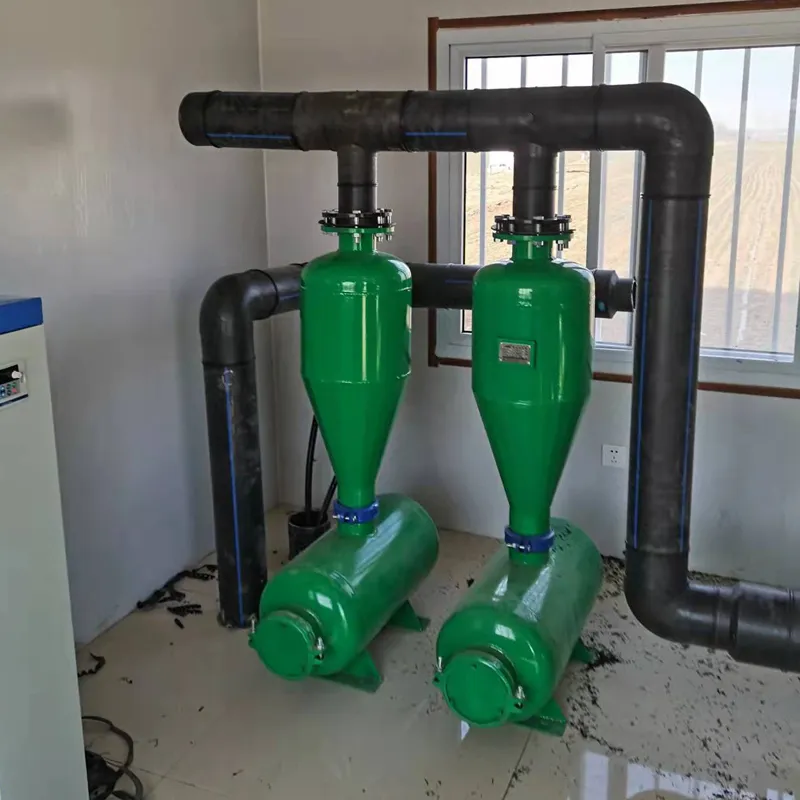

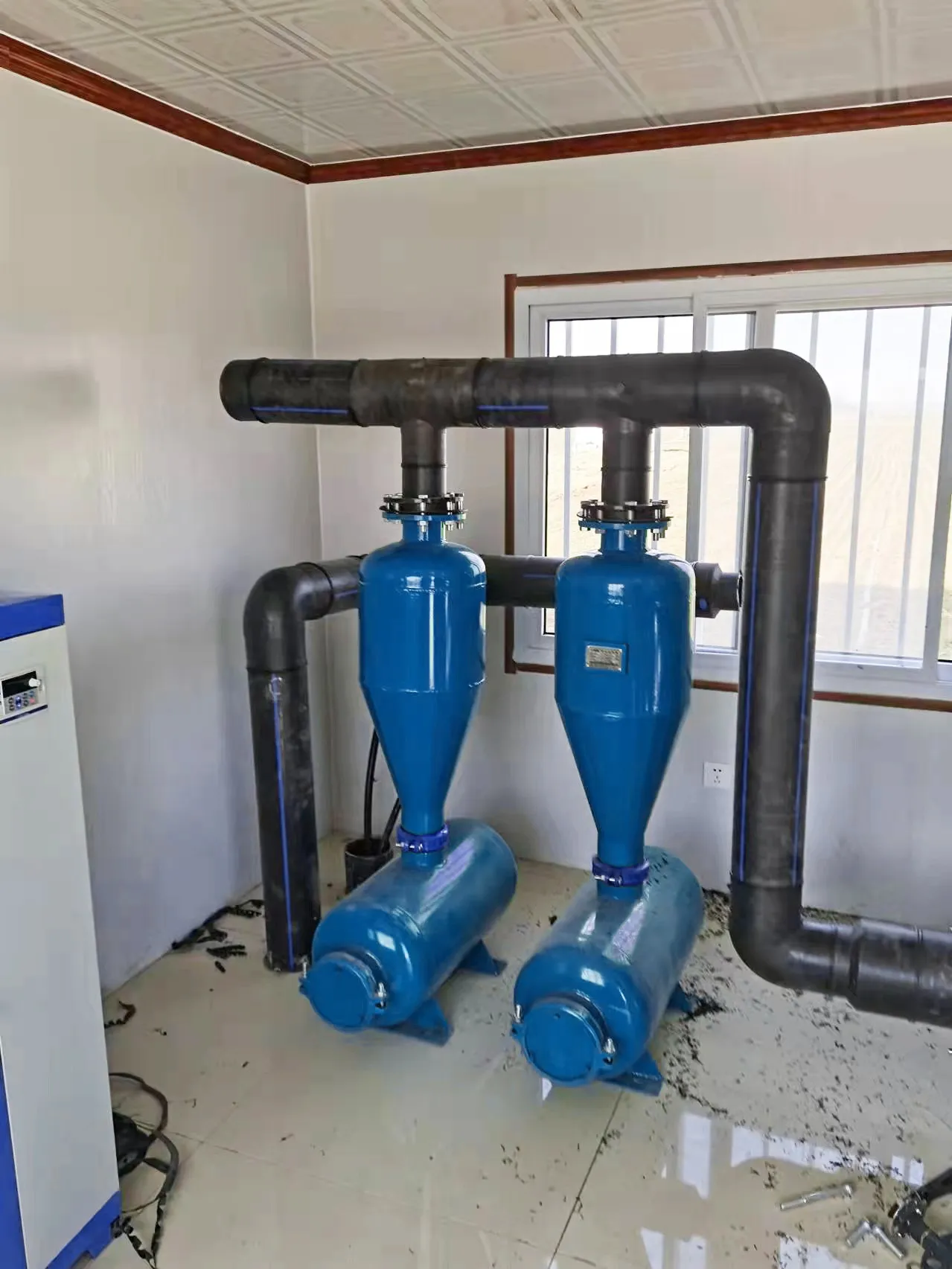

DLXL centrifugal filter Hydro Cyclone Desander Used as the primary filtration of groundwater and deep well water to remove large particles. Sand removal rate is up to 99%. Features:
The centrifugal filter is based on the principle of centrifugal sedimentation and density difference.
When the water flow enters the device tangentially from the sand separator inlet under a certain pressure, due to the different density of sand and water, the centrifugal force and centripetal force The buoyancy and fluid drag forces cause different forces to cause the low-density clean water to rise and be discharged from the overflow port. The dense sand is discharged from the bottom sand discharge port to achieve the purpose of sand removal. Under a certain range and conditions, the greater the inlet pressure of the sand remover, the higher the sand removal rate, and multiple units can be used in parallel.

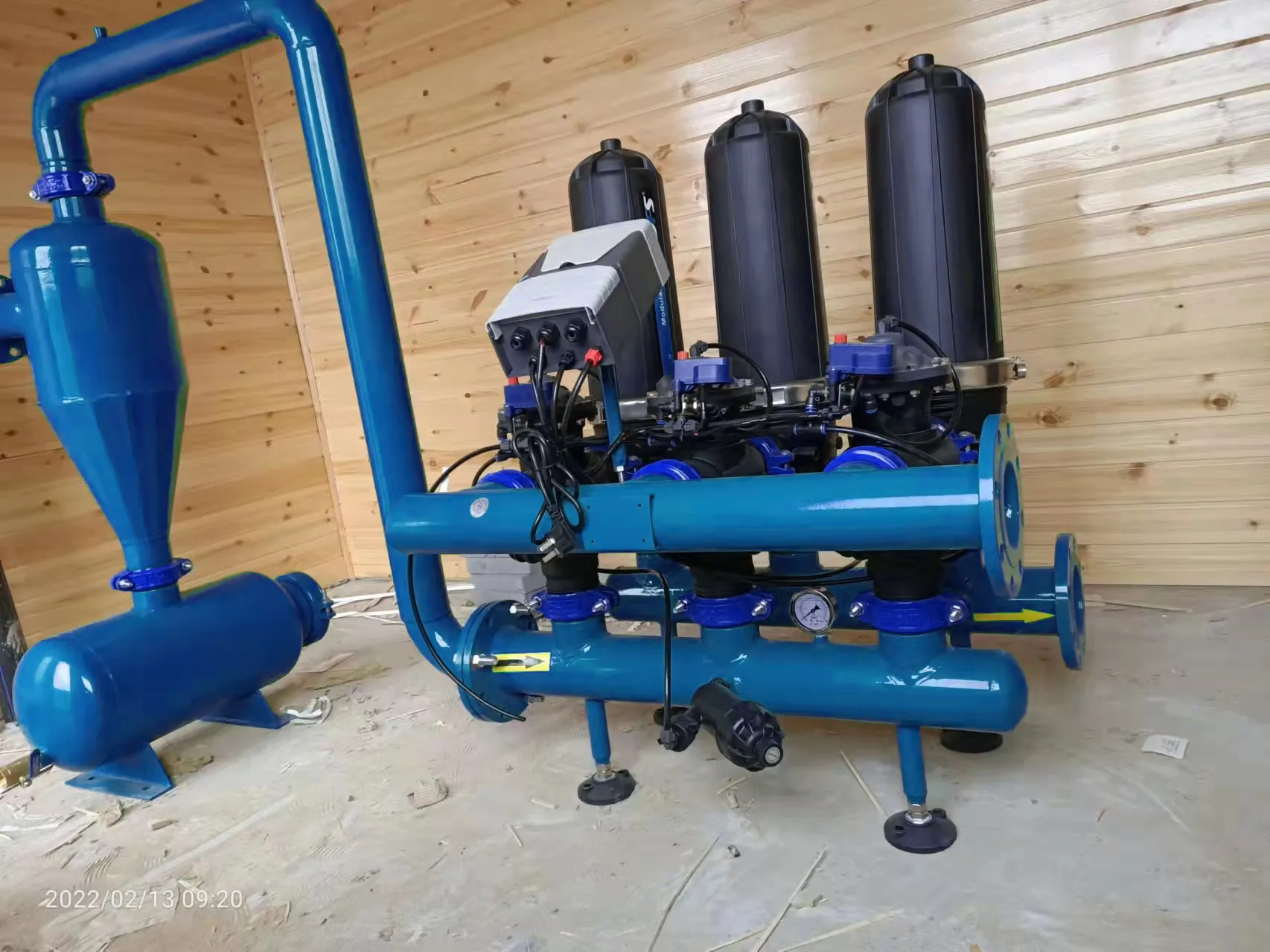

Process flow Raw water-agricultural irrigation centrifugal filter-fine filter-storage tank-user. |
|
| Water inlet pressure | ≥0.1-0.2MPa | pressure loss | 0.025MPa |
| Sand removal diameter | >0.1mm | operation temperature | ≤85℃ |
| Model | Water in/out (mm) |
D (mm) |
h (mm) |
H (mm) |
| DLXL-50 | 50 | 219 | 720 | 925 |
| DLXL-80 | 80 | 273 | 1010 | 1220 |
| DLXL-100 | 100 | 325 | 1020 | 1305 |
| DLXL-150 | 150 | 377 | 1247 | 1590 |
| DLXL-200 | 200 | 426 | 1316 | 1721 |
