Automatic self-cleaning water filters: Single unit flow 19-2000m3/h Filtration precision 20-4000 micron
Type：Vertical Material：Carbon steel Cleaning：Brush Control：Automatic
Product advantagev
> High flow rate/high filtration accuracy
> Low pressure loss/low backwash water consumption
> High automation level

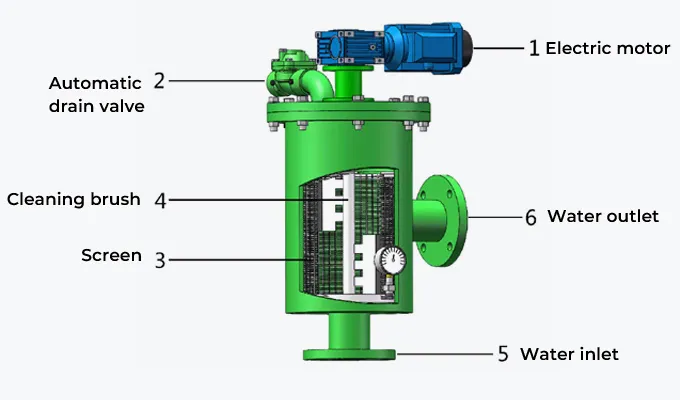

Product principle
|
The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet. When the particles accumulated to a certain number and the pressure differential increases to the pre-determined level, the flushing cycle starts. It include two steps: First, the automatic drain valve opens on the drainage outlet. Then, electronic motor drives the cleaning brushes which are inside the screen, the solids are expelled through the drain valve. Filters continue to supply filtered water even during the flushing cycle.The whole working system is controlled by a smart box which has several control modes: pressure differential, time, manual and PLC. The water flows through the screen and the particles are retained on the inside of the screen of the filter element. The filtered water then flows out through the outlet. |
|
| Flowrate | 19-4000m3/h | Control way | Differentialpressure/time/manually/PLC |
|---|---|---|---|
| Filtration precision | 20um-4000um | Cleaning way | Brush |
| Working pressure(max.) | 1 .6MPa(Customized) | Cleaning time | 10-200S(Adjustable) |
| Working pressure(min.) | 0.1MPa | Perforate screen | 800-4000um |
| Working temperature | <65'℃ | Wedge screen | 50-1000um |
| Power | 380V150HZ | Sintered screen | 20-800um |

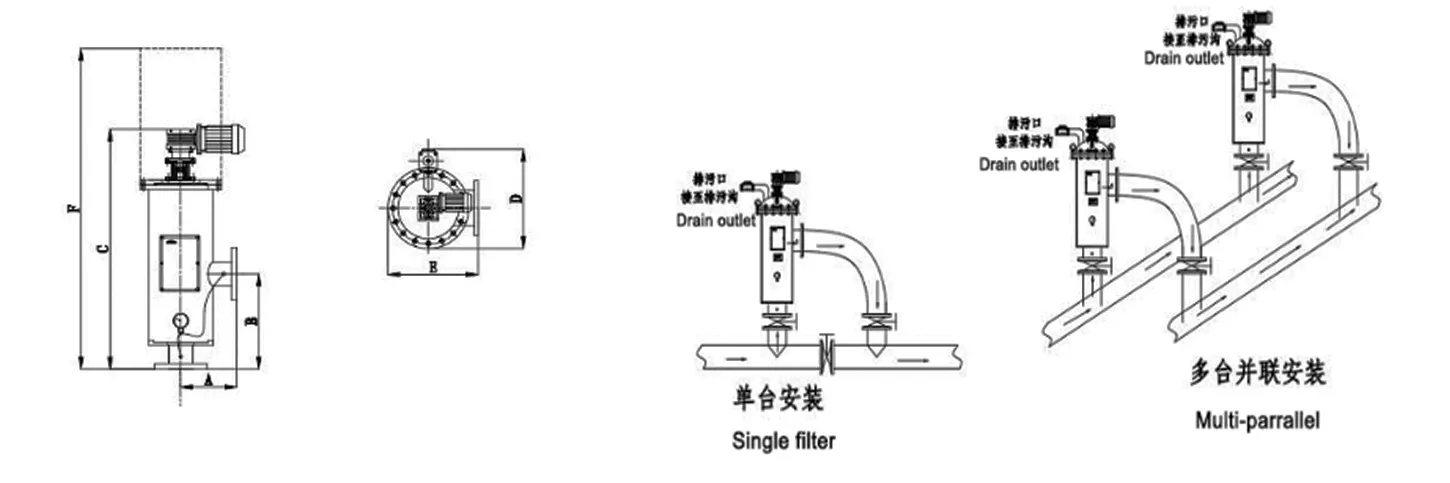

| Model | Water in/out(mm) |
A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | Drain out (mm) |
Motor Power (KW) |
Flowrate (m3h) |
Weight (Kg)(m3/h) |
| DLD-FL-50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| DLD-FL-50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| DLD-FL-50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| DLD-FL-50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| DLD-FL-50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| DLD-FL-50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
